TV>IP™ - Flexible Multimedia Platform Solution

TV>IP™ Logo


TV>IP™ is a unique multimedia platform and flexible TV headend solution to stream any source media with the latest encoding technology (H.264, H.265). The media content is delivered over computer networks based on multicast traffic enabling unlimited access to all streams. The e.sigma software converts all source content from satellite/cable/terrestrial formats as well as graphical outputs and IP content into single multicast streams through a server application. The approach is easily scalable by adding additional TV>IP™ servers providing an unlimited number of content channels to any network connection. The slim server hardware (1HE) has a flexible configuration choosing from the number of tuners and CAM/CI modules to serve any system requirements.


TV>IP™: Operational Benefits

  • Video/Audio multicast solution for maximum flexibility
  • e.sigma TV>IP™ server processes satellite/cable/terrestrial transponders to single-out TV programs
  • Scalability by configuring/duplicating TV>IP™ server units (#tuner, #CAM/CI)
  • Seamless integration of IP cameras, WebRadio and Webvideo sources
  • Use of IP-based wired and wireless networks for TV stream distribution
  • Optimized Usage of bandwith for wireless acces using SPTS
  • Unlimited number of users/viewers
  • Web-based administration to select/configure viewable programs
  • Smart TV via ThinClient as decoder
  • Wireless devices support the use of a standard multimedia player (phone, tablet, laptop via KODI)
  • ThinClient/ SmartTV device for H.264/H.265 decoding and monitor connection through HDMI
  • The e.sigma TV>IP™ solution supports HDMI-CEC
  • TV>IP™ is a protected trademark of e.sigma


TV>IP™: Use Cases

1. e.sigma TV>IP server

  • Connects cable/satellite/terrestrial sources to tuner for channel extraction
  • Intuitive Web GUI for channel setup and IP stream configuration
  • Provides m3u-playlist and electronic program guide
  • Connects to network switch for multicast stream availability
  • DiSEqC / Unicable I/II support
  • Web stream to multicast stream conversion
  • CAM / CI / SCAM support
  • Remote Update / Maintenance and ZeroConf networking support
  • Backup / Restore Channel Configuration


2. Smart TV application

  • Convert any HD screen to a Smart TV
  • Use SmartTV directly to view channels (KODI)
  • Support m3u-playlist, EPG and Channel-logos
  • Configuration/TV channel selection through WebGUI


3. Thin Client

  • Support H.264/H.265 HW accelerated decoding
  • Use KODI to access TV>IP™ playlist
  • Internet access for browsing
  • PayTV support


4. Video Wall

  • Scalability to video wall functionality
  • Multi screen support
  • Easy/flexible content creation


TV>IP™ - Flexible Multimedia Platform Solution

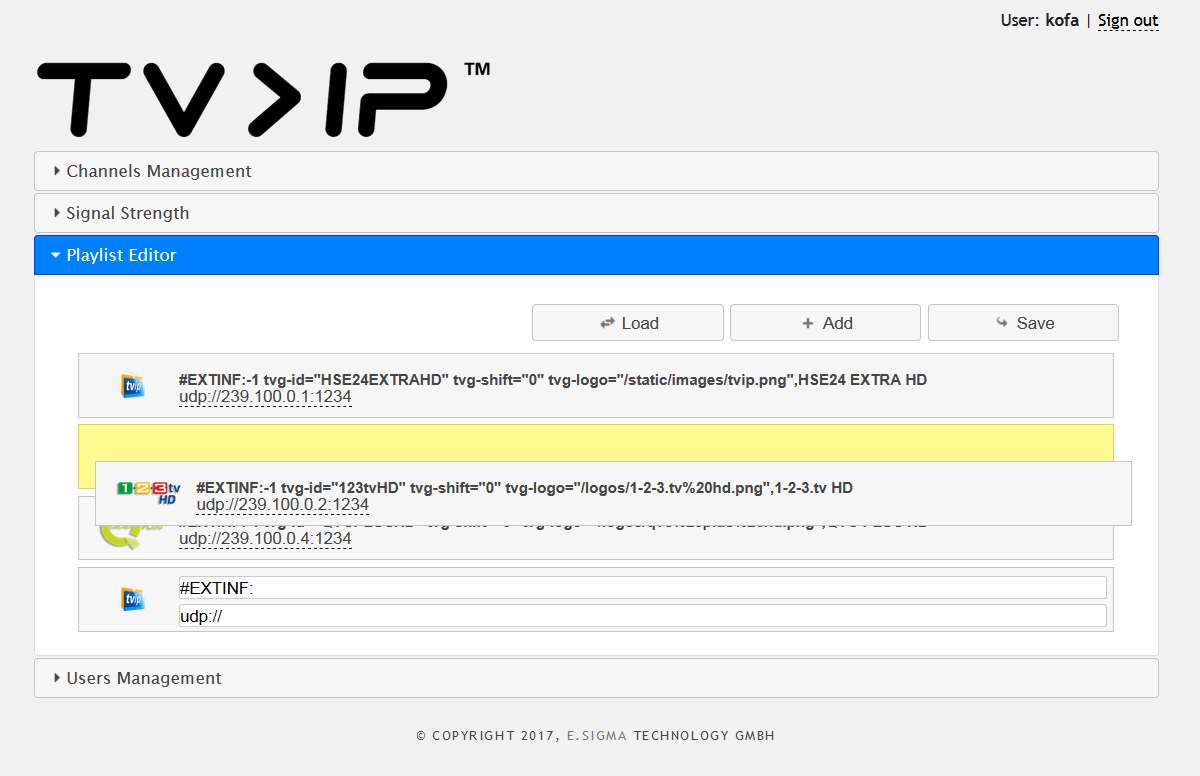

TV>IP™ Management Frontend
TV>IP™ Trademark

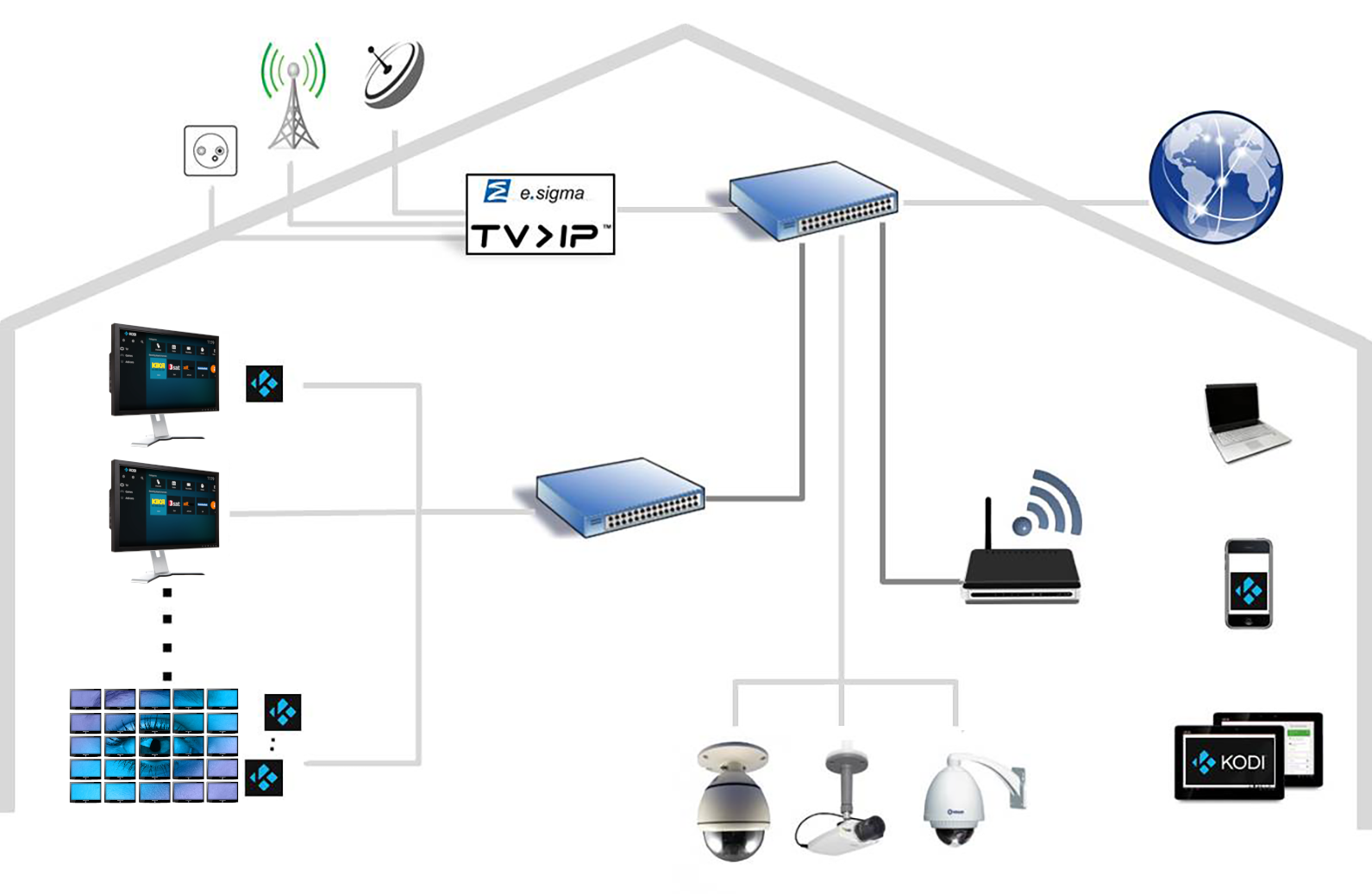

TV>IP™ Example Configuration
Product Video
